Swing loader Pro-Series
Resource-efficient and productive on the tightest construction sites
Limitless ways of application
Thanks to high stability when handling heavy loads, both in extended and swung positions, and a wide range of compartible attachments, Paus telescopic swing loaders are ideal partners in the communal sector, construction, landscaping, underground engineering and cable construction.

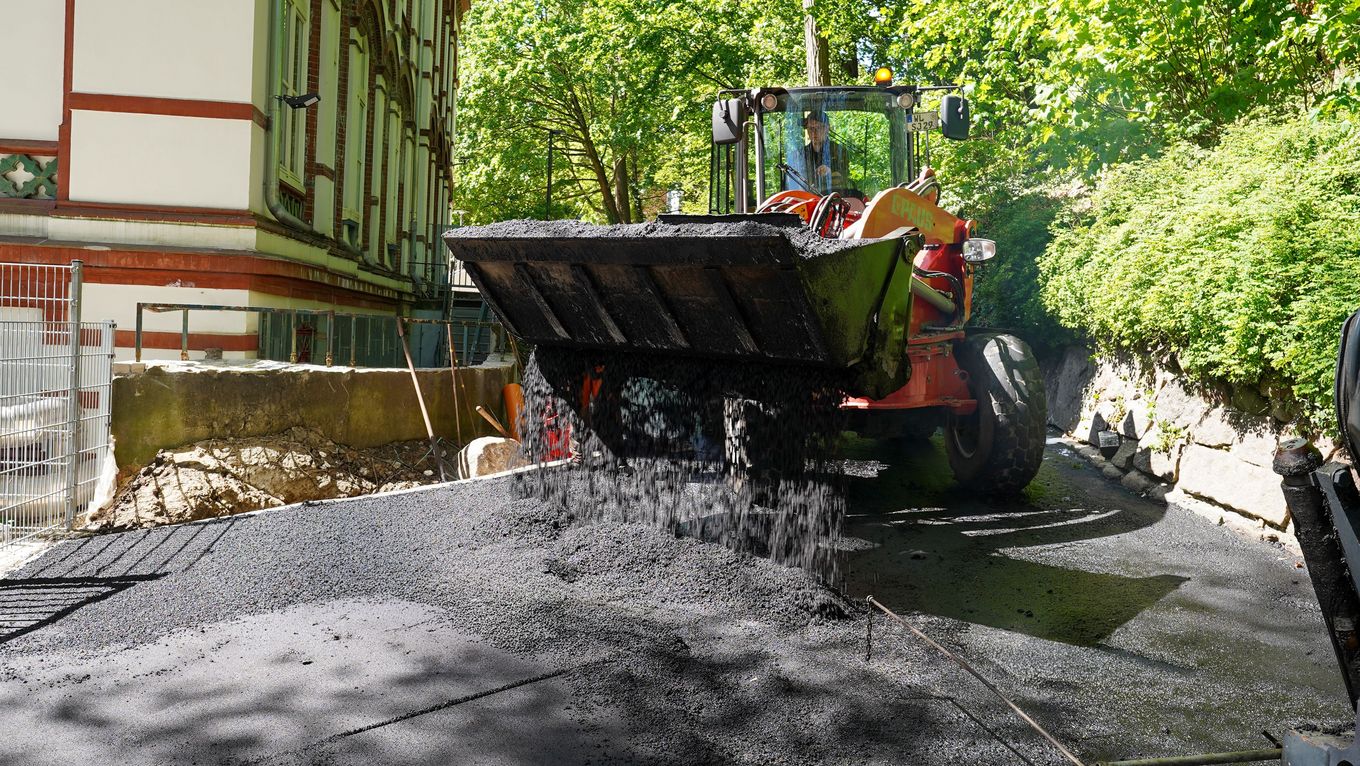

In addition to standard applications with a bucket or pallet fork, this machine series demonstrate versatility in winter service, street maintenance, mulching, mowing and operating a sweeper. The usage of a working platform completes the multifunctionality of the equipment carrier and enables safe working at heights.
PRODUCT HIGHLIGHTS
Durable and safe
- Solid and torsion-resistant steel frame, suitable for increased load capacity when attaching additional equipment, ensures maximum stability and durability - even under extreme operating conditions.
- The construction machine axles with 100% differential lock, which can be engaged under load, ensure maximum traction and optimal power transmission - especially in difficult terrain.
- Two-door ROPS/FOPS-II safety cabine with excellent all-round visibility, equipped with a standard roof window with protective grid, rear window heating and powerful LED work lights for optimal visibility and increased operating comfort day and night.
- The variable pendulum axle lock is available as an option and increases driving stability and standstill, especially when operating on uneven terrain or when working with heavy attachments.
User-friendly
- Ergonomic multifunction joystick with partially illuminated functions, integrated driving buttons, control of the auxiliary circuits, activation of the differential lock as well as the float and shake function.
- The Paus controller features a 7-key system with direct button selection, enabling quick and targeted access to all relevant applications and machine functions under adverse weather conditions.
- Additional functions: a display-integrated weighing system as a loading aid (optional), cruise control, individually adjustable user profiles, numerous assistance systems, a variable speed limiter, electronic end position damping and many other functions.
- Maintenance-friendly machine design with grouped grease nipples, easily accessible fuse box, oil-bath lamellar brakes and locking cylinders above the pivot point of the swinging mechanism.
SL 9088 PRO
| Weight | 7,605 kg |
| Motor Deutz | TCD 3.6 L4 Stufe V |
| Bucket volume | 1.2 m³ |
| Dumping height | 2,750 mm |
| Stacking height | 3,320 mm |
| Tipping load max. | 4,975 kg |
Reduce engine RPM, increase efficiency!
Attachments
Powerful engines with up to 85 kW and additional hydraulic control circuits with a capacity of up to 140 l/min enable the drive of high-performance attachments.
A selection of attachments is presented here. Other options are possible.
