Easy Flex
Designed for Maximized Performance and Operating Comfort

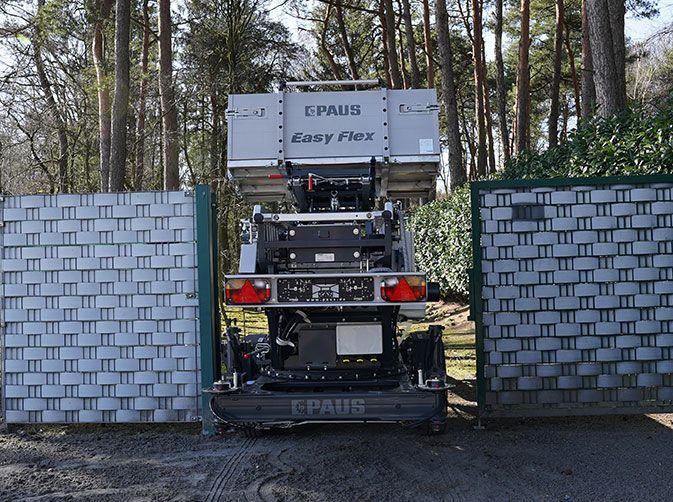

Compact Footprint
With a passage width of only 1.60 m (5 ft. 3) and a total length of less than 7 m (22 ft. 11), the elevator can be easily transported even in confined spaces. In operation, the Easy Flex achieves a maximum extension length of 35 m (114 ft. 10) and offers an endless 360° working radius.

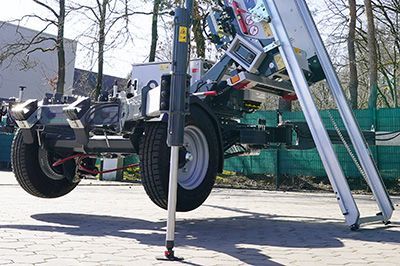

Maximum Safety
The patented braking system ensures safe driving. The swiveling and telescopic X-support allows various position configurations for maximum stability and flexibility. The stable lower extension ensures back-friendly working.

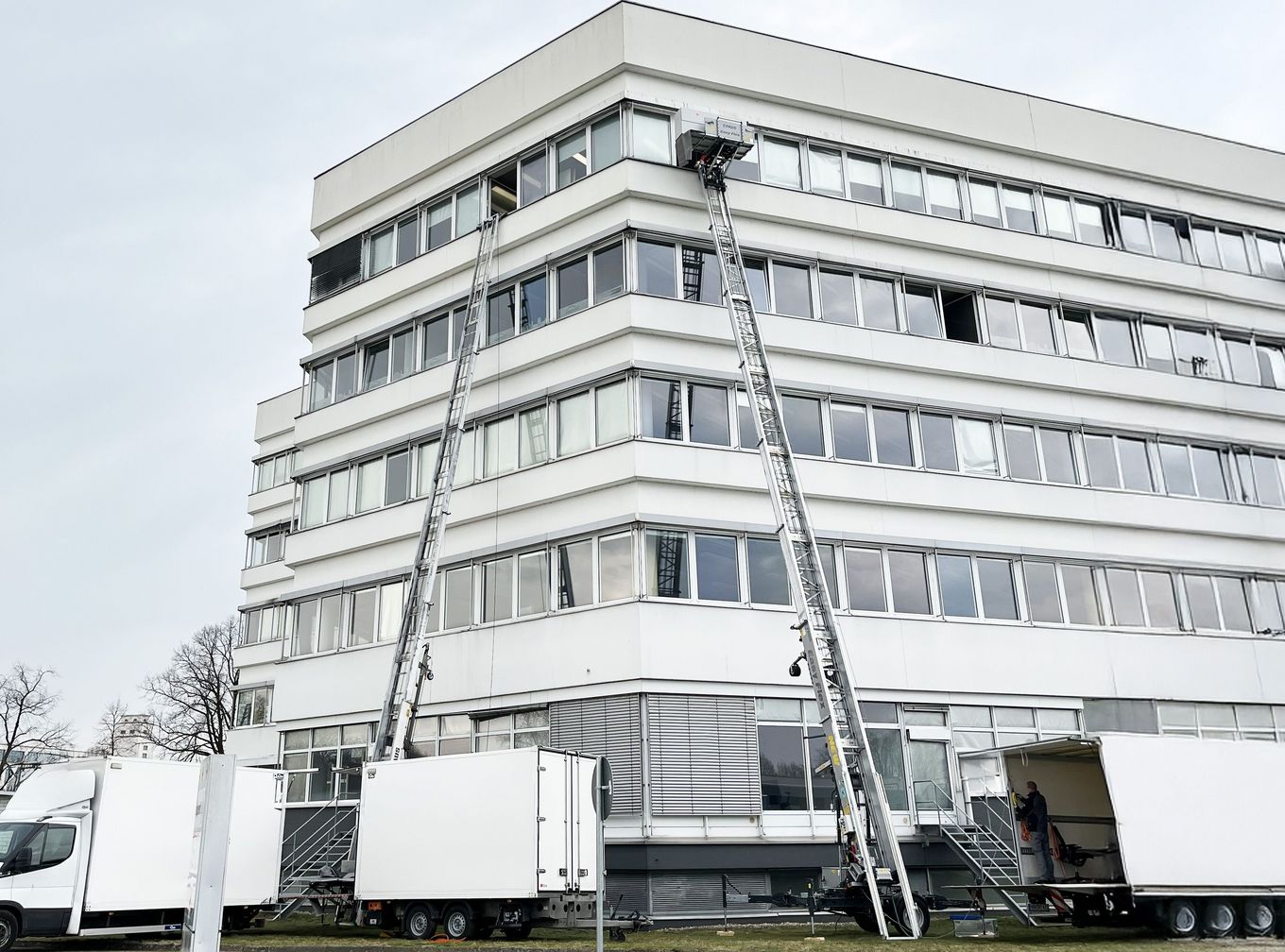

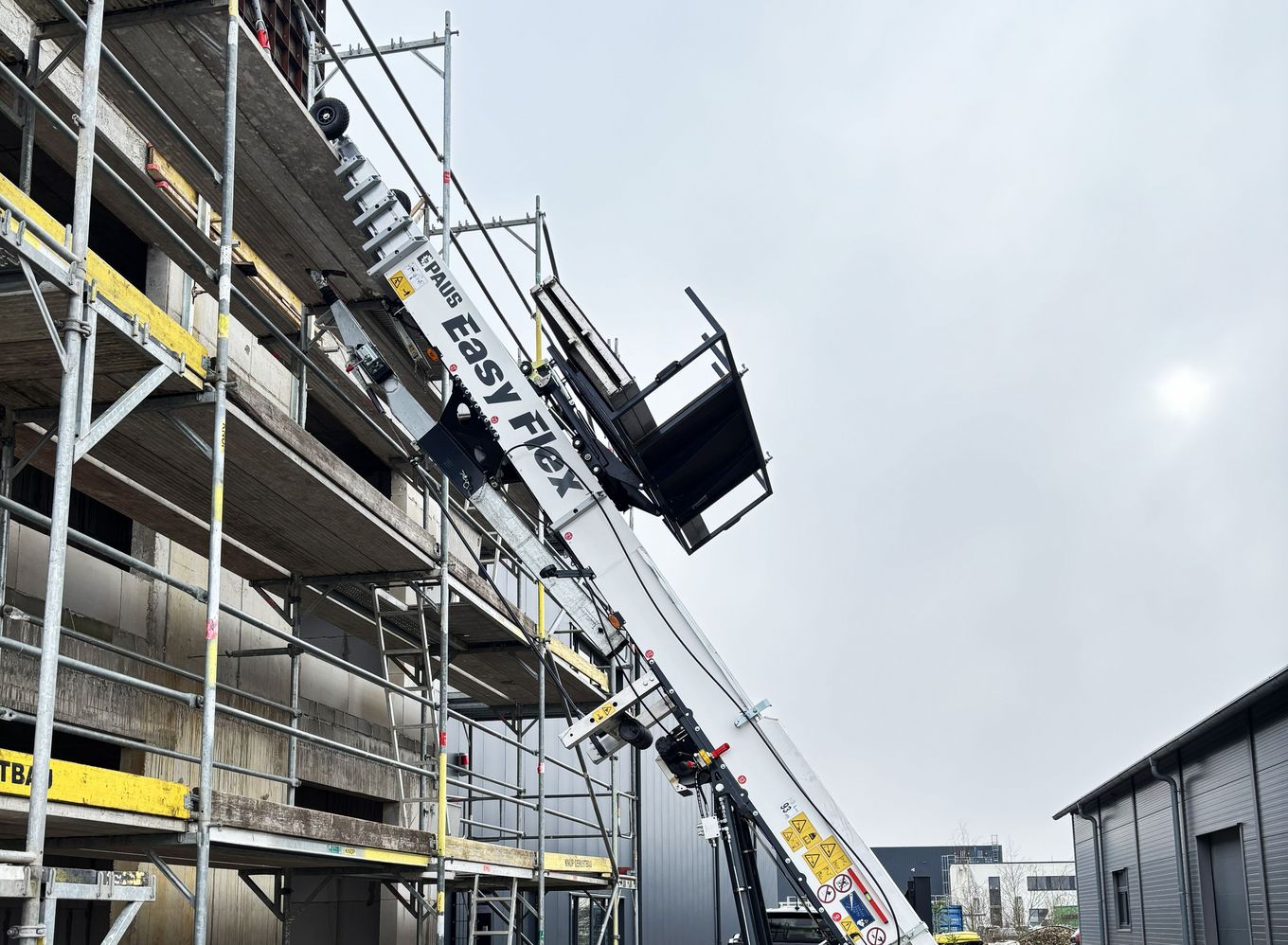

Versatile Operation
The Easy Flex impresses with its versatility and robust construction. Thanks to various platforms, it can be flexibly used in any task and offers reliability and durability in daily use. Depending on the platform type, the payload is up to 400 kg (882 lbs).
Product Highlights
Flexibility
- Narrow passage width
- Small footprint
- 360º pivot radius
- Designed for multiple applications
- Multiple Platforms
Operating comfort
- Designed for Stability (hydraulic or manual outriggers)
- Hydraulic double knee joint (only on the Easy Flex 28 K)
- Patented Braking System
- Maintenance-free rail package
- User-friendly operation
- Designed for Safety (bowden cable, rope breakage system)
Options
Hydraulic Support

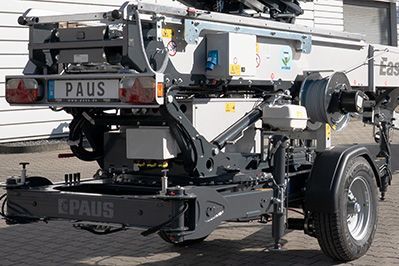

Force-locking wheel drive

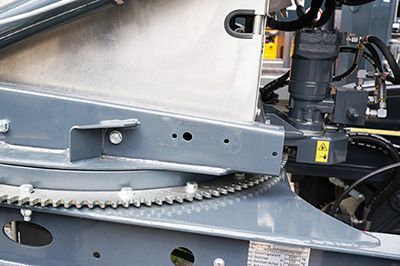

Hydraulic Turntable
Technical Information
| EASY FLEX 27 | EASY FLEX 31 | EASY FLEX 35 | EASY FLEX 28 K | |
|---|---|---|---|---|
| Number of profiles | 1 - 6 | 1-7 | 1-8 | 1-7, Hydraulic double knee joint |
| Profile length | 5,000 mm (16′ 5″) | 5,000 mm (16′ 5″) | 5,000 mm (16′ 5″) | 5,000 mm (16′ 5″) |
| Payload, max. | 250/400* kg (551/ 882 lbs) | 250/400* kg (551/ 882 lbs) | 250/400* kg (551/ 882 lbs) | 250 kg (551 lbs) |
| Delivery height, approx. | 5.0 - 27.0 m (16′ 5″ - 88′ 7″) | 5.0 - 31.0 m (16′ 5″ - 101′ 8″) | 5.0 - 35.0 m (16′ 5″ - 114′ 10″) | 5.0 - 28.0 m (16′ 5″ - 91′ 10″) |
| Total weight, basic version | approx. 1,850 kg (4,078.5 lbs) | approx. 2,000 kg (4,409 lbs) | approx. 2,150 kg (4,740 lbs) | approx. 2,050 kg (4,519.5 lbs) |
| Transport length | 6,950 mm (22′ 10″) | 6,950 mm (22′ 10″) | 6,950 mm (22′ 10″) | 6,950 mm (22′ 10″) |
| Transport width | 1,600 mm (5′ 3″) | 1,600 mm (5′ 3″) | 1,600 mm (5′ 3″) | 1,600 mm (5′ 3″) |
| Drive | Honda Gas Engine | Honda Gas Engine | Honda Gas Engine | Honda Gas Engine |
